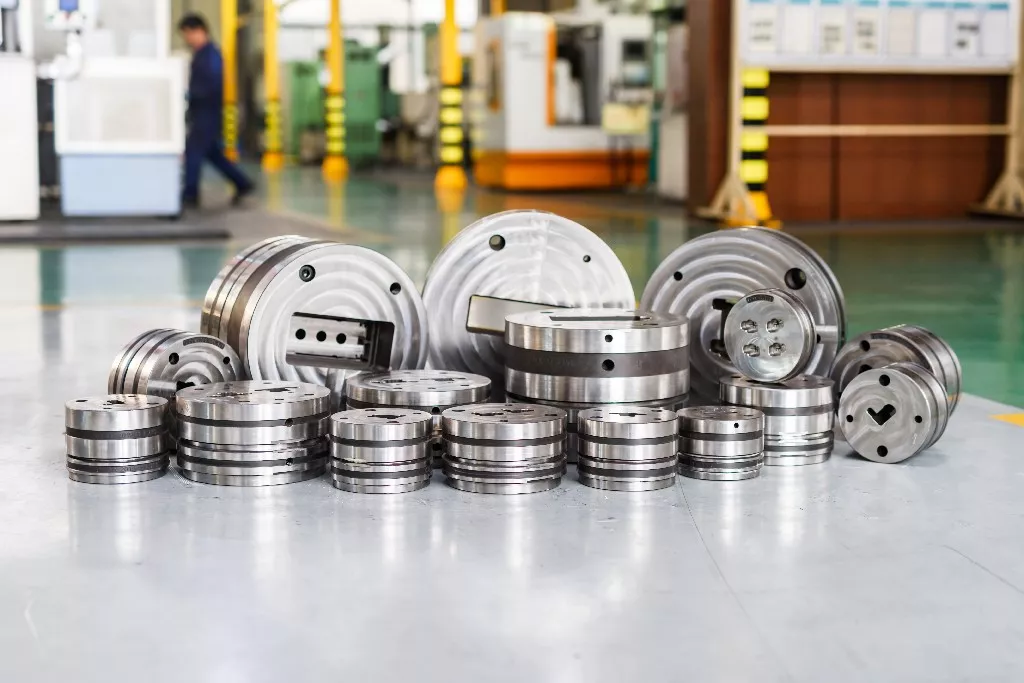

Factory Custom H13 Steel Multi-void Solid Hollow Extruded Mould Bolster matrix Aluminum Extrusion Die

Factory Custom H13 Steel Multi-void Solid Hollow Extruded Mould Bolster matrix Aluminum Extrusion Die

One mold per application, specifically designed for particular profile cross-sections.
Capable of forming complex hollow, multi-cavity, and other irregular cross-sections.
Withstands high temperatures, high pressure, and intense friction during extrusion.
Constructed from special hot-work tool steel and subjected to rigorous heat treatment.
Enables continuous, high-speed mass production.
A near-net-shape forming process that significantly reduces material waste.
Consistently produces extruded profiles with high dimensional accuracy and uniformity.
Capable of forming complex, high-performance profiles in a single operation.
Quickly switches between different products by changing dies.
Extremely low die cost per unit when producing large volumes.

Aluminum extrusion dies are critical core components in aluminum profile production. Through these dies, aluminum billets are extruded under high temperature and pressure into various cross-sectional shapes for use across multiple sectors including construction, industry, electronics, new energy, and automotive.

Application:

• Architectural Profiles: Doors, Windows, Curtain Walls, Decorative Frames

• Industrial Equipment: Automation Frames, Rail Structures

• Electronic Heat Dissipation: Aluminum Enclosures, Heat Sinks, Guide Rail Profiles

• New Energy & Automotive: Battery Cases, Body Structures, Lightweight Components

Mould Material	H13/H11/Carbon tungsten alloy
Cavity	Max to 10 cavity, customized
Surface treatment	High quality Vacuum heat treatment and nitriding
Hardness	Webster hardness 48-52°
Mould life Output	More than 6 Tons aluminum Profiles
Equipped Plant	Extruder press, die oven, billet furnace
Max dia size of die	Outer diameter up to 1,700mm
Packing	Fumigation free plywood box, carton box, etc
Application	Tooling for the press to produce aluminum profile such as window profiles, industrial profiles, door profiles and profiles for curtain wall, etc


FAQ

Q: What characteristics make a heatsink a good one

A: High heatsink surface;Good aerodynamics; Good thermal transfer within the heatsink;Perfect flatness of the contact area;Good mounting method

Q: How long is your delivery time
A: Generally it is 5-10 days if the heat sinks are in stock. or it is 20-30 days for mass production

Q: What's your advantages compare with other suppliers
A: Factory one-stop customized processing from extrusion mould to finished products with 20years experience! extrusion mould, extrusion profile, cutting, CNC, anodize

Q: What is your terms of payment
A: Usually 100% payment before shipment. For regular customers, the terms can be negotiated

If you have any other questions, please feel free to contact us
